Magnifier lens width and height is available in Settings > Accessibility > Magnifier. It controls the horizontal and vertical dimensions of the movable enlarged region used by Lens view. On the reproduced Windows 11 25H2 PC, the exact control began at 30 width and 30 height, moved temporarily to 40 width and 40 height, and returned to 30 width and 30 height.
The change is a current-user accessibility preference and required no administrator approval. The controlled test used only a privacy-safe Settings window, changed no personal file, and closed Settings, Magnifier, and ShareX after the rollback.
What does Magnifier lens width and height change?
Controls the horizontal and vertical dimensions of the movable enlarged region used by lens view. Lens size changes the window through which magnified content is shown; it does not change the zoom percentage inside that window. Width and height are separate sliders and must be recorded separately.
A larger lens exposes more context but can cover more of the ordinary desktop. A smaller lens is less intrusive but shows less surrounding material.
Microsoft Support documents the current Magnifier feature and its supported Windows interface. The official description matches the labels reproduced on this Windows 11 build, so there is no need for a Registry edit, third-party magnifier, or an assumed legacy control name.
Table of contents
What should you check before changing it?
First, open the target page and record the displayed value. The baseline in this test was 30 width and 30 height. Windows applies Magnifier preferences directly, so that note is the rollback reference; there is no separate Apply button.
Close confidential documents, notifications, and account pages before testing any screen-reading or enlargement behavior. Use a disposable Settings page or a neutral local sentence. That precaution matters because magnification and reading tools can make visible or spoken content easier for bystanders to notice.
Change only Magnifier lens width and height. The page contains related controls for zoom, view, appearance, following behavior, and reading. Moving a sibling at the same time makes it impossible to attribute the result to one preference.
How do you change Magnifier lens width and height?
Press Windows logo key + I to open Settings.

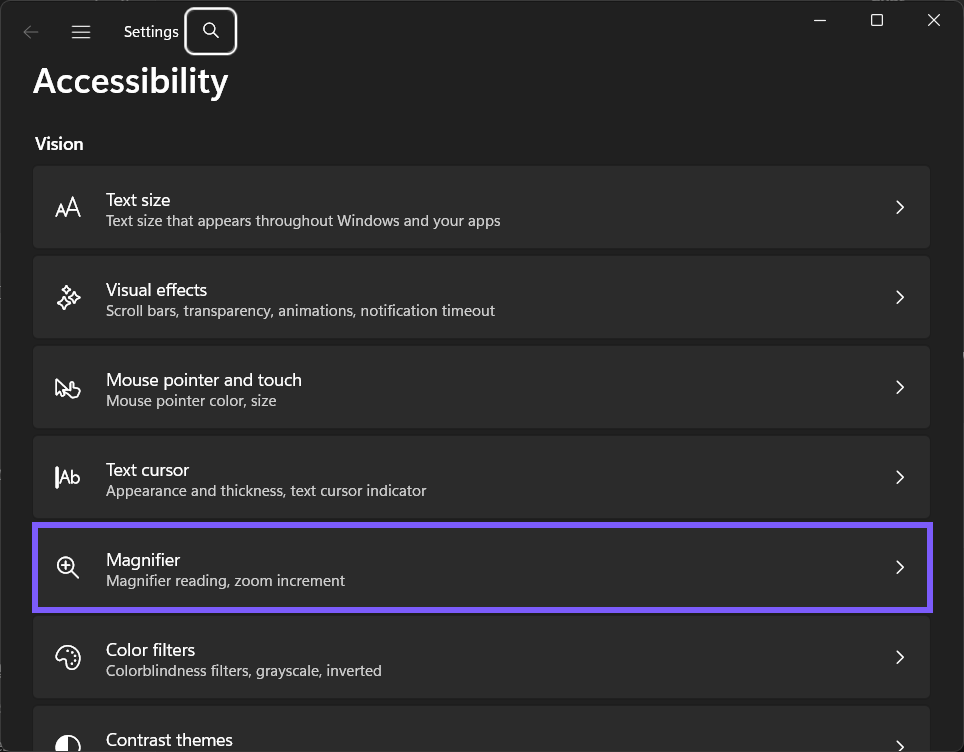

Select Accessibility, then select Magnifier under Vision.
Locate Magnifier lens width and height. Expand its parent row when the control is inside additional view, startup, or reading choices.

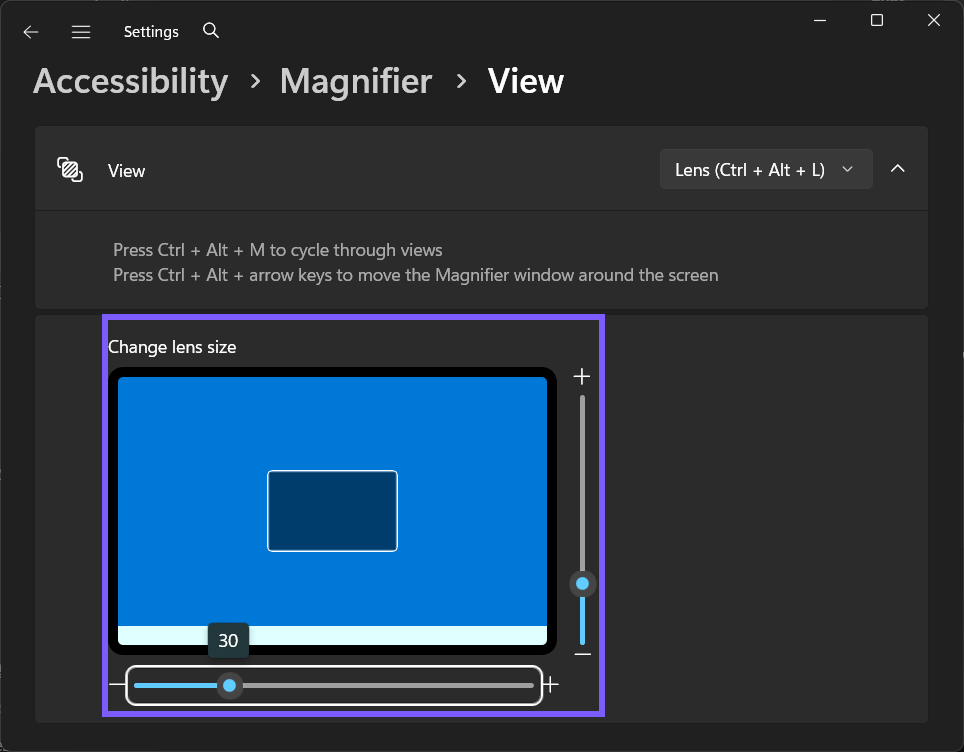

Confirm that the displayed starting value matches the one you recorded. In the reproduced session, it was 30 width and 30 height.

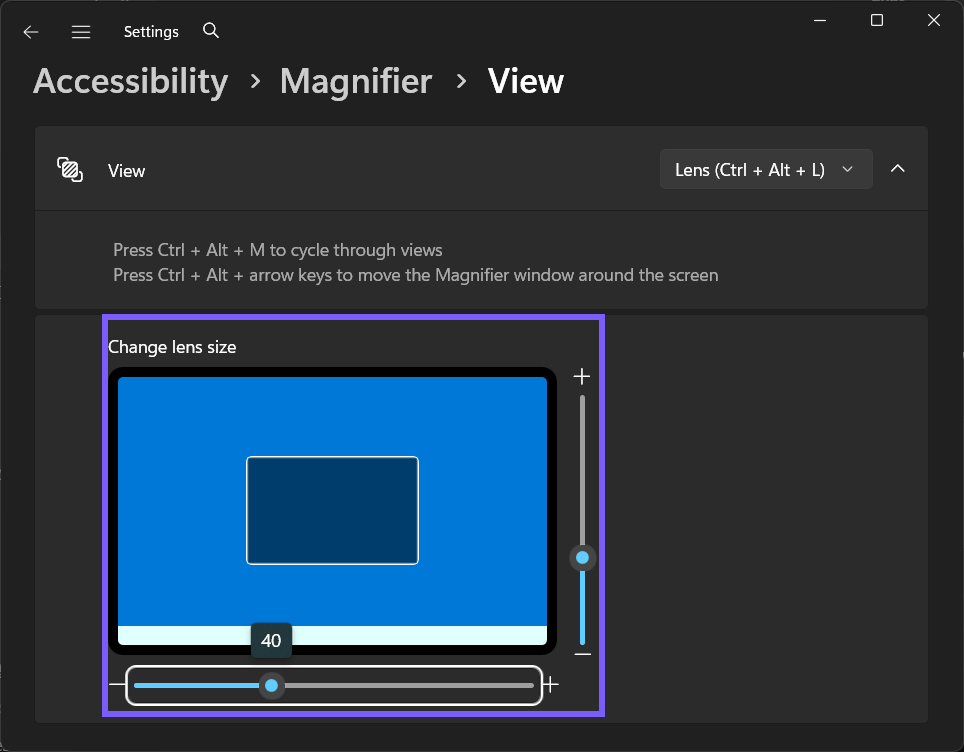

For the controlled comparison, move both the horizontal and vertical lens-size sliders from 30 to 40. On your own PC, choose the value that suits the behavior you actually want.
Microsoft Support confirms the relevant Magnifier shortcut or reading boundary. Use the documented Settings interface and shortcuts instead of downloading an unrelated utility.
How can you verify the change safely?
Both sliders began at 30, moved to 40, and returned to 30. The preview rectangle provided a privacy-safe visual check; Magnifier itself remained Off during the Settings-only comparison.
Begin by reading the control itself and confirming 40 width and 40 height. A precise UI read-back is evidence that the preference changed; a behavior check should be narrow, disposable, and free of private content. Do not open email, passwords, customer data, or a personal photo merely to demonstrate Magnifier.
The controls apply to Lens view. Display scaling, resolution, and multiple monitors affect the physical size of the lens on screen.
What did the reproduced comparison show?
The width and height sliders changed together to 40 and were independently read back at the original 30 values after rollback.
The comparison demonstrates the exact Settings transition on the tested PC. It does not claim that every display, voice package, language, remote session, protected surface, or third-party application will present identical surrounding behavior.
How do you restore the original value?

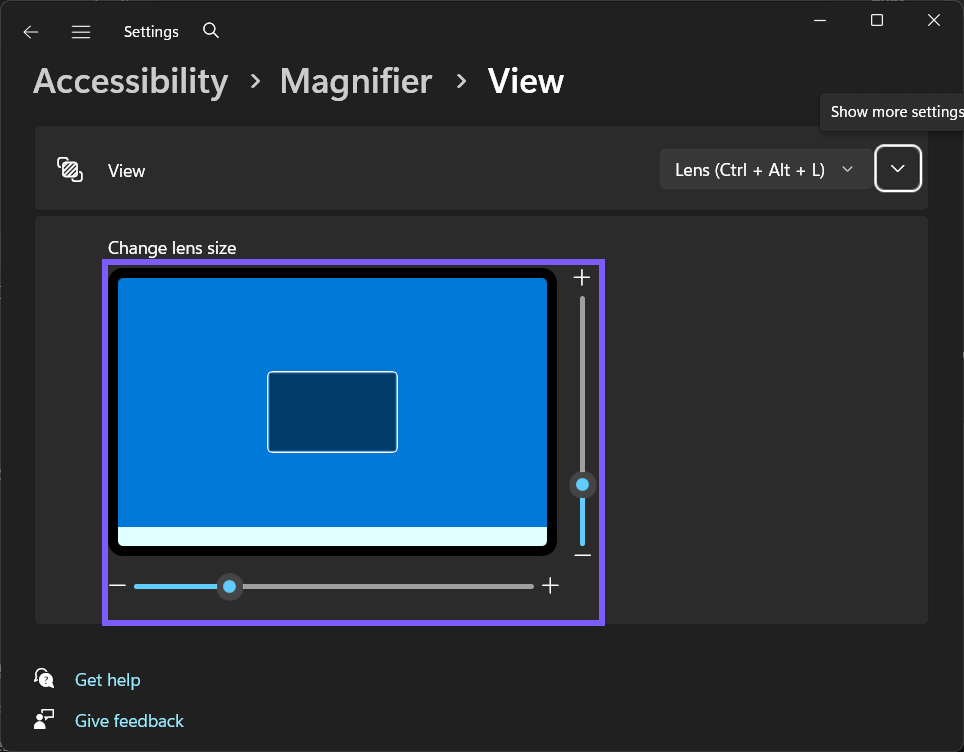

Return to Settings > Accessibility > Magnifier, locate Magnifier lens width and height, and return both lens-size sliders to 30. Re-read the same control and confirm 30 width and 30 height before closing the test surface.
The fresh post-rollback frame is separate from the original baseline and proves the final state. No reset, sign-out, restart, service change, voice-package installation, or administrator command was used for this reversible preference test.
How is this different from nearby Magnifier options?
Lens size changes the window through which magnified content is shown; it does not change the zoom percentage inside that window. Width and height are separate sliders and must be recorded separately.
Treat the label as a scope boundary. If the problem concerns a different view, zoom amount, color treatment, reading voice, startup point, or system-wide accessibility feature, return to the parent page and use that exact control rather than changing several choices together.
Common problems and careful checks
Why can you not find the lens-size sliders?
Select Lens in the View menu and open the View detail page. Other views do not use the movable lens rectangle.
Why did the lens shape change?
Width and height are separate controls. Moving only one changes the aspect ratio.
Does a larger lens increase zoom?
No. It shows a larger area at the current zoom level; the Zoom level control determines enlargement.
How do you restore the original shape precisely?
Record both numbers before changing them, then return the horizontal and vertical sliders to those values.
Does this require administrator rights or a restart?
No administrator rights or restart were required for the reproduced Settings transition. A managed work or school PC can lock an accessibility preference; when that happens, ask the administrator instead of attempting to bypass policy with a script or Registry change.
When a behavior is not immediately visible, first confirm the exact value and the setting's scope. Close and reopen only the harmless test surface if needed. That is safer than resetting Windows accessibility preferences or changing unrelated display and speech settings.
Related display and accessibility options
If enlargement is broader than you need, you can make text larger without magnifying the whole screen. For a different accessibility goal, see how to use a Windows contrast theme. Both links lead to already-live WinSides guides rather than scheduled Magnifier drafts.
Frequently Asked Questions
Where is Magnifier lens width and height in Windows 11?
Open Settings > Accessibility > Magnifier, expand the relevant section, and use the exact control shown in the screenshots.
Can you restore the original value after testing?
Yes. Return to the same control, restore 30 width and 30 height, and read it back. The reproduced session captured a fresh frame after rollback.
Why might Magnifier behave differently on another PC?
Displays, scaling, monitor layouts, installed voices, language packs, remote sessions, policies, and Windows builds can change the surrounding experience. Compare the same control with harmless content.
Do you need a Registry edit for this Magnifier setting?
No. The supported Settings control changed and rolled back without Registry Editor, elevation, or a restart.
Conclusion
Open Settings > Accessibility > Magnifier, record the starting value, and change only Magnifier lens width and height. Verify the narrow result with privacy-safe content, then restore 30 width and 30 height whenever the change was only a test.
